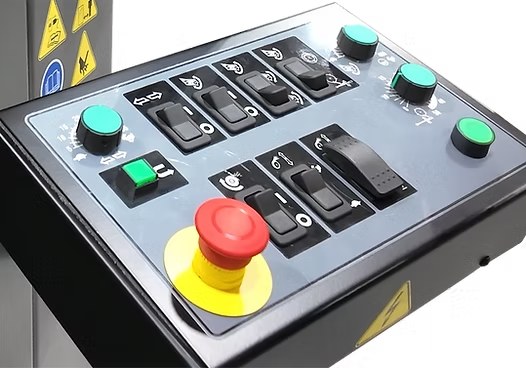

Custom Graphic Overlays for Durable Control Panels and User Interfaces
Graphic overlays do more than improve a product’s appearance. They serve as the primary user interface for many control panels, instruments, electronic devices, medical equipment, and industrial machinery.
Choose the Right Graphic Overlay Material
For engineers, quality managers, and buyers, the right overlay construction affects durability, readability, functionality, and long-term performance.
Metallics manufactures custom graphic overlays, combining printing, material selection, precision cutting, and engineered adhesives to produce components designed for specific equipment and operating environments.
Polyester and polycarbonate are two common materials used for graphic overlays. Each offers advantages depending on the application.
- Polyester: Provides excellent flex life and chemical resistance, making it useful for membrane switches and controls requiring repeated actuation
- Polycarbonate: Offers clarity, impact resistance, and a variety of textures and finishes. It is often selected for control panels, instruments, and electronic interfaces.
Material thickness, surface finish, chemical exposure, and expected service life also influence selection.
Metallics can help customers evaluate these factors to determine the appropriate material and construction.
Protect Graphics from Wear and Exposure
Graphic overlays often face repeated handling, cleaning chemicals, moisture, UV exposure, and abrasion.
Subsurface (2nd Surface) printing places graphics behind the transparent substrate, helping protect text, symbols, and logos from direct surface wear. Protective coatings, textures, and appropriate ink systems can provide additional durability.
Metallics offers custom printing and finishing options to help maintain graphic clarity, color consistency, and readability throughout the product’s intended service life.
Design Overlays Around Function
Many graphic overlays require more than printed text and graphics.
Common design features include:

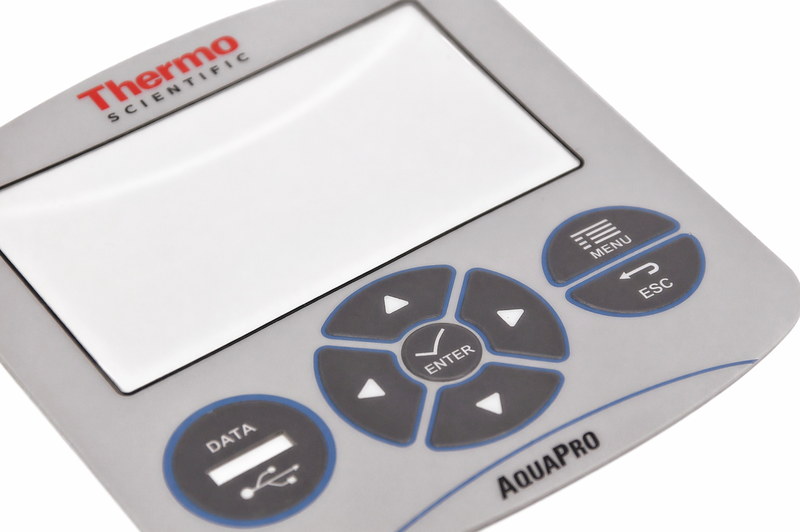

- Clear or tinted display windows

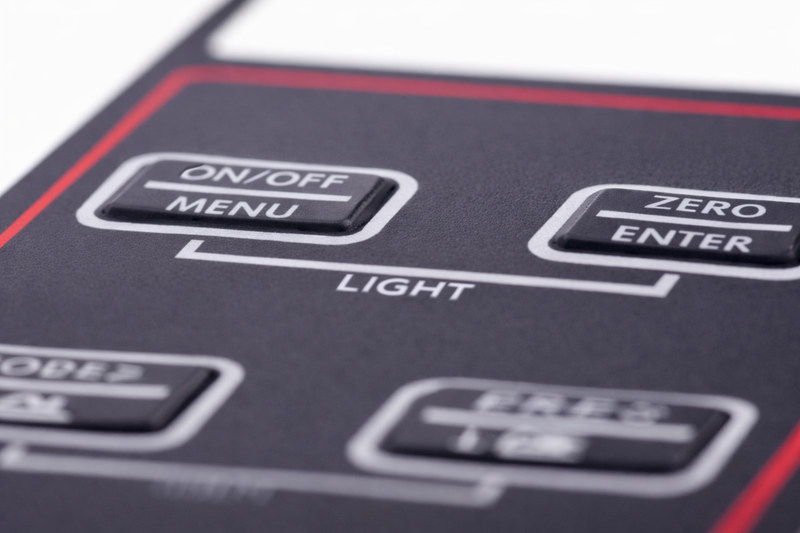

- Embossed buttons and tactile features

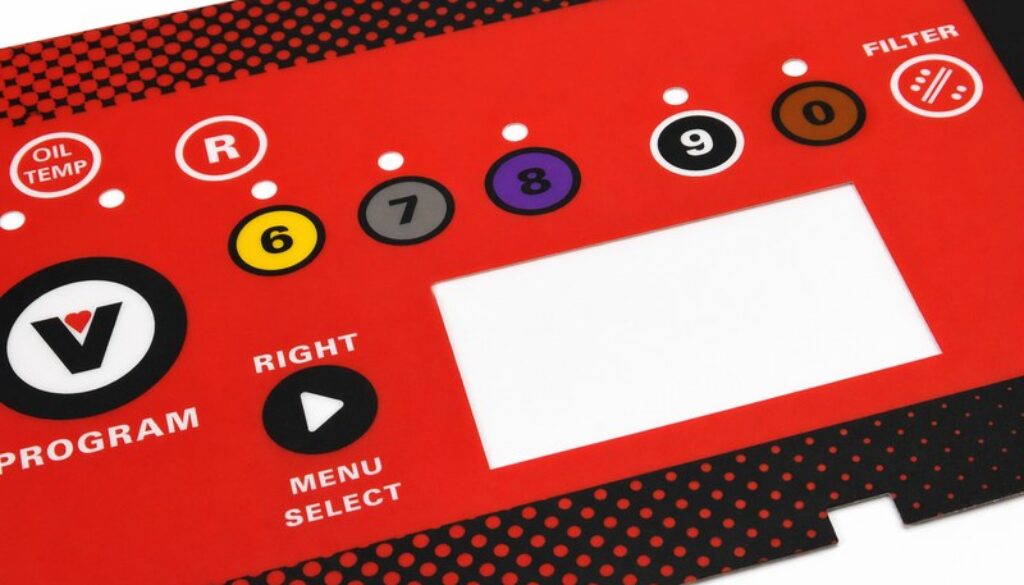

- Dead-front graphics and backlit areas
- Openings for switches and indicators
- Custom shapes and alignment features
- Selective adhesive and protective finishes
Each feature must support the finished product’s operation. For example, display windows need adequate clarity, while button areas must withstand repeated use.
Metallics’ custom printing, die-cutting, and laser-cutting capabilities help support precise shapes, openings, and other design requirements.
Match the Adhesive to the Surface
Even a durable graphic overlay can fail if the adhesive does not match the mounting surface.
Powder-coated panels, painted metals, plastics, curved surfaces, and textured materials can create different bonding challenges. Temperature, moisture, cleaning chemicals, and surface preparation also affect adhesion.
As a 3M Select Converter, Metallics offers a broad selection of engineered adhesive tapes, thin bonding materials, and foam adhesives.
Our converting capabilities allow us to incorporate custom adhesive patterns and liners that support secure mounting and efficient assembly.
Improve Quality and Assembly Efficiency
Accurate dimensions, consistent printing, and proper adhesive placement all contribute to reliable overlay performance.
Metallics combines in-house die making, precision cutting, and custom converting to produce overlays designed around the finished assembly.
These capabilities help support repeatability, accommodate design changes, and reduce installation challenges.
Build Graphic Overlays for Long-Term Performance
The best graphic overlay combines appearance, functionality, and durability. Selecting the proper substrate, printing method, finish, and adhesive helps maintain performance throughout the product’s service life.
Metallics can review your graphic overlay requirements, including materials, display windows, artwork, environmental exposure, and mounting needs. Contact us to explore custom overlay solutions designed for your equipment and application.
